Polyurethane Waterproofing System for Ceramic Tile Terraces
Ceramic tile terraces are an essential part of modern buildings, providing functional outdoor spaces for residential, commercial, and public use. While tiled terraces provide an attractive and durable surface finish, waterproofing beneath the tiles is one of the most critical factors affecting the long-term performance of the entire terrace system.
Without a properly designed waterproofing system, tiled terraces may experience water leakage, tile debonding, grout cracking, insulation deterioration, and structural damage caused by long-term moisture infiltration.
This article introduces a complete polyurethane waterproofing system for ceramic tile terraces, explaining how each layer works together to provide durable and long-lasting waterproof protection.
Unlike exposed waterproofing systems, the waterproofing layer beneath ceramic tiles becomes concealed after installation. Once leakage occurs, repairs are often difficult, costly, and disruptive.
Several factors make terrace waterproofing particularly demanding:
Constant exposure to rainwater and standing water
Thermal expansion and contraction caused by temperature changes
Structural movement and substrate cracking
Water penetration through grout joints
Foot traffic and maintenance activities
Risk of trapped moisture inside the terrace assembly
Because of these conditions, tiled terrace waterproofing systems are required to withstand long-term environmental exposure and structural movement while maintaining reliable waterproof performance
To ensure long-term durability, the waterproofing system must remain stable and flexible under changing environmental and service conditions.
A reliable system should provide:
Excellent crack-bridging ability
Long-term elasticity
Strong adhesion to concrete substrates
Reliable vapor control
Compatibility with insulation and tile systems
Resistance to ponding water and weather aging
Among different waterproofing technologies, polyurethane liquid-applied systems are widely used for tiled terraces due to their seamless application, flexibility, and durable waterproof performance.
OYH provides a complete terrace waterproofing solution to address the challenges described above.

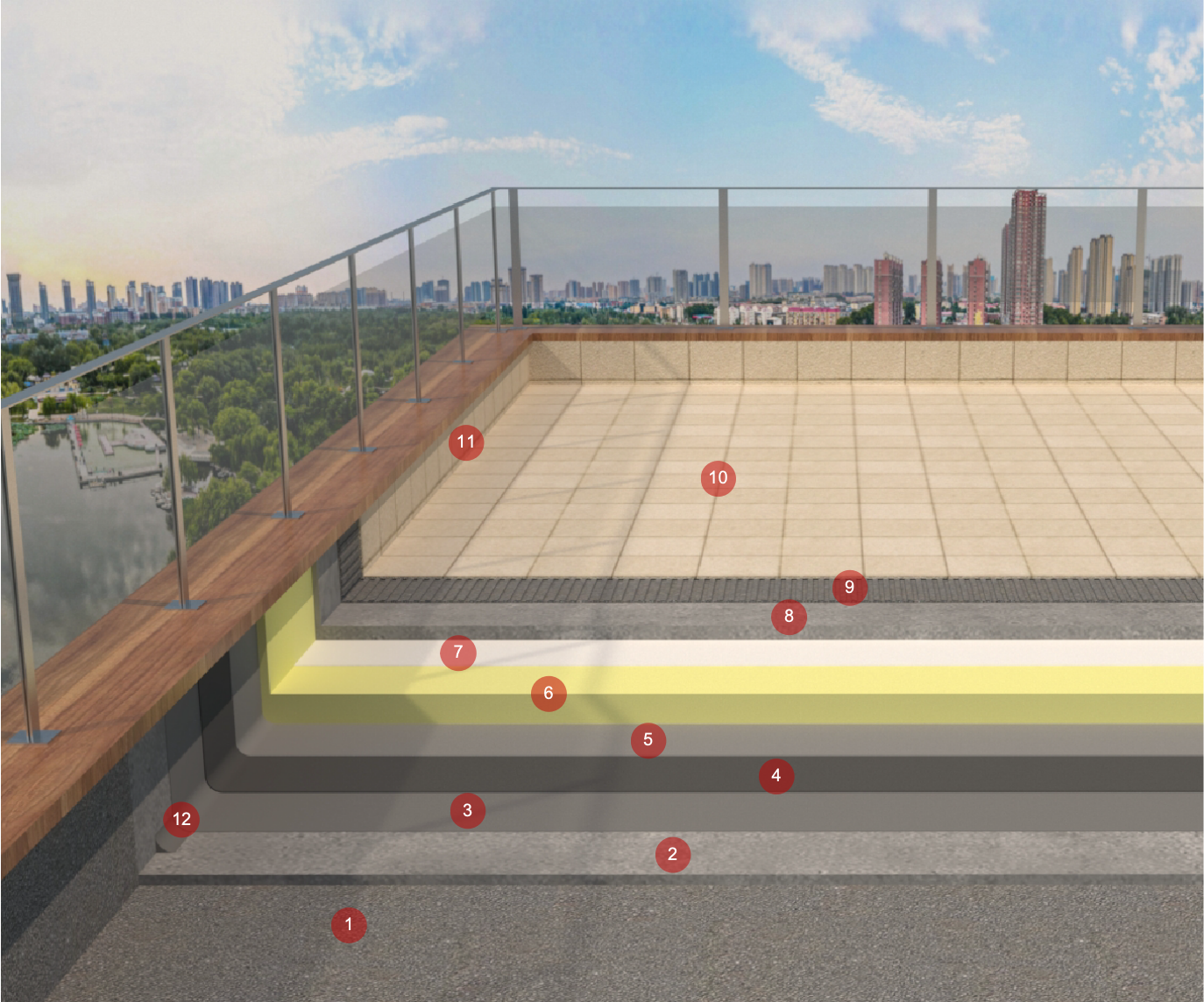

The tiled terrace waterproofing system includes:
Primer
Single-component Polyurethane Waterproofing Coating
Vapor Barrier
Thermal Insulation Board
Tile Installation Materials
Sealants and Accessories
Our systems are designed to help contractors and developers achieve durable waterproof performance while simplifying installation and long-term maintenance.
The structural concrete deck serves as the foundation of the entire terrace system. Proper surface preparation is essential before waterproofing application.
A screed layer is installed to create the required slope for efficient drainage and to minimize ponding water risks.
The primer enhances adhesion between the concrete substrate and the polyurethane waterproofing coating.
Recommended Products:

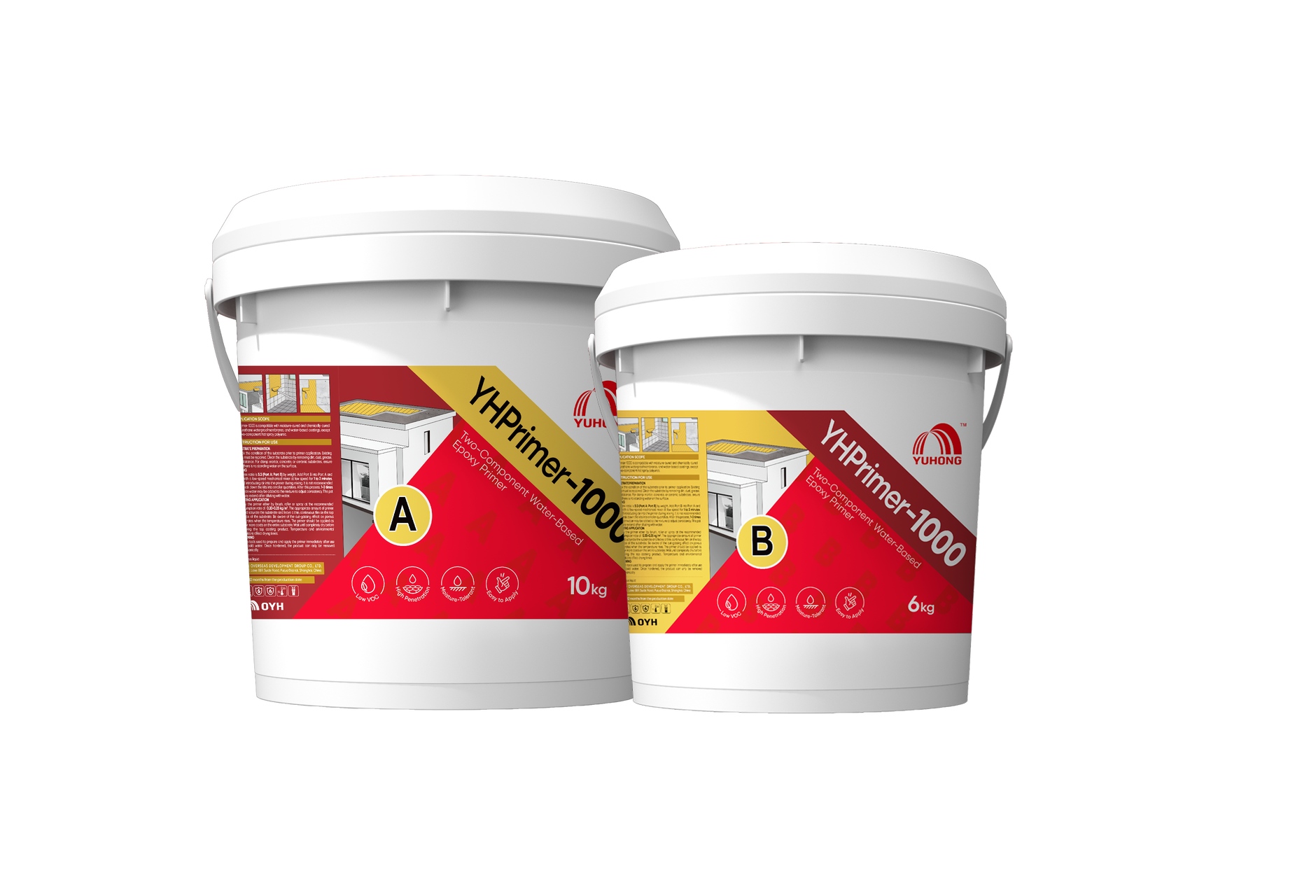

YHPrimer-1000 Two-component Moisture-Tolerant Epoxy Water-based Primer
This is the core waterproofing layer of the system. Liquid-applied polyurethane membranes form a seamless and fully bonded waterproof barrier capable of accommodating substrate movement and preventing water ingress.
Recommended Products:

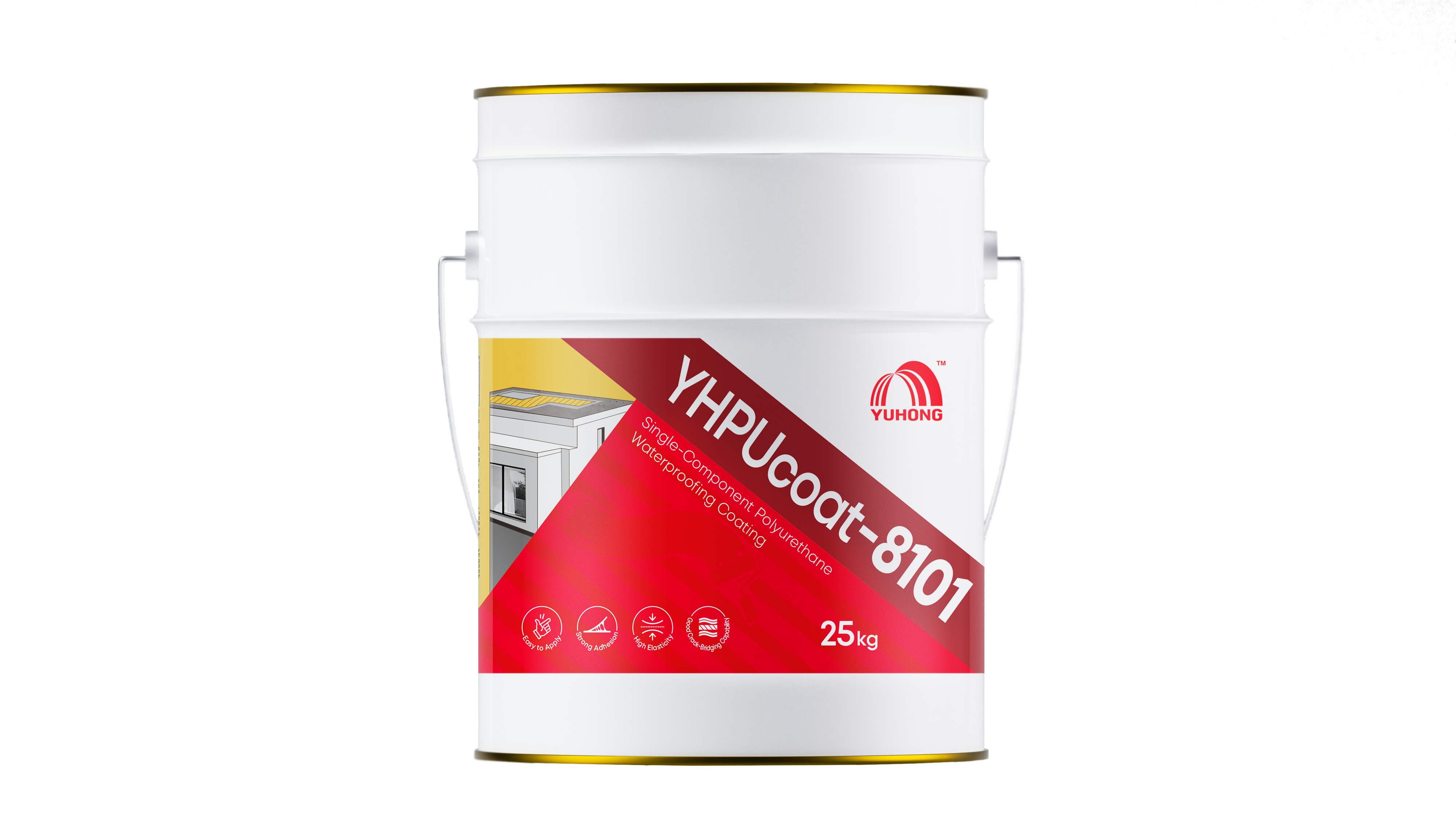

YHPUcoat-8101 Single-Component Polyurethane Waterproofing Coating

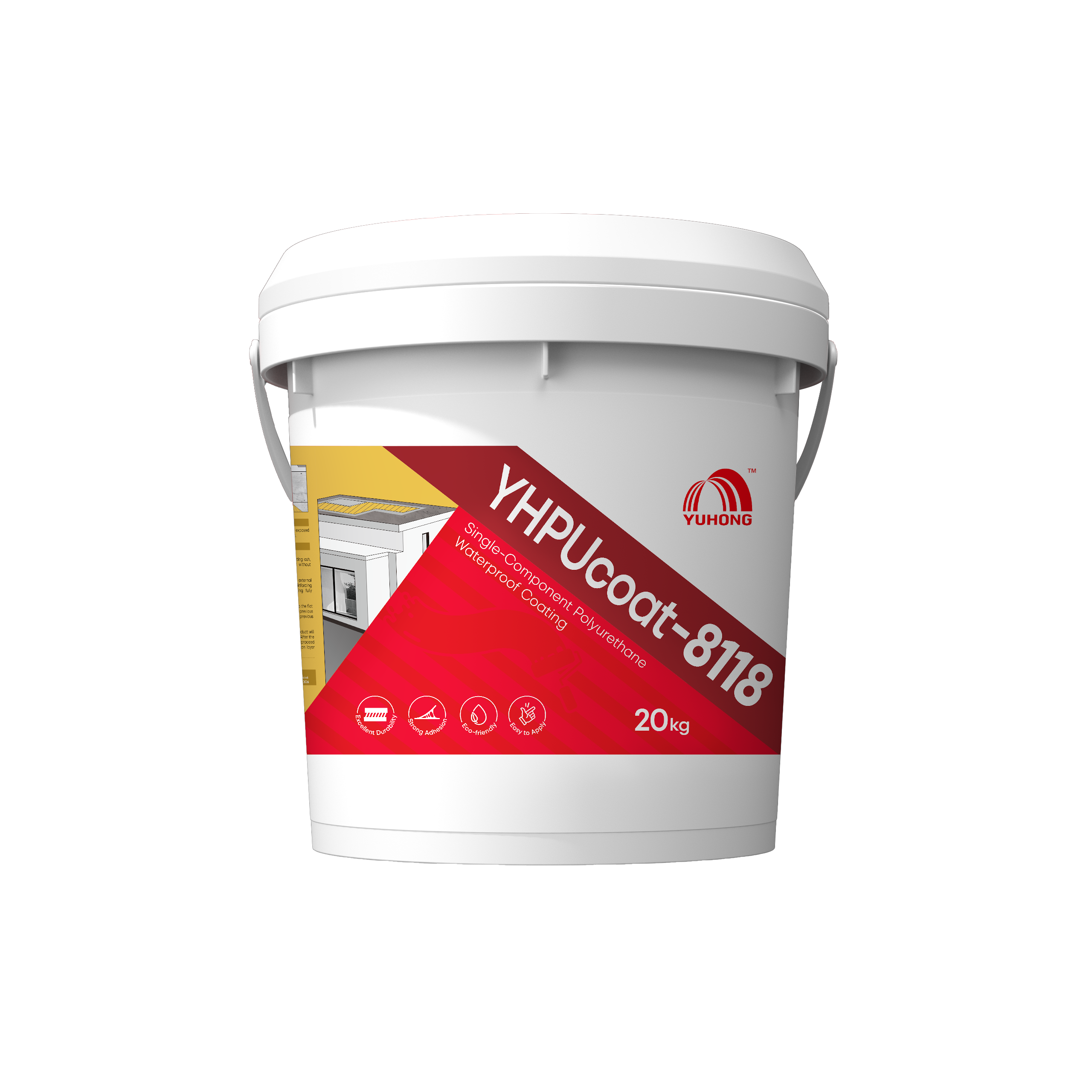

YHPUcoat-8118 Single-Component Water-based Polyurethane Waterproofing Coating
YHPUcoat-8130 Single-Component Low-VOC Polyurethane Waterproofing Coating
The separation layer helps isolate different materials within the system and improves overall system stability.
Recommended Products:
YHPEfilm-0600 Vapor Impermeable Film
Thermal insulation improves building energy efficiency and contributes to stable indoor comfort.
Recommended Product:
OYH XPS Board
The separation layer helps isolate different materials within the system and improves overall system stability.
Recommended Product:

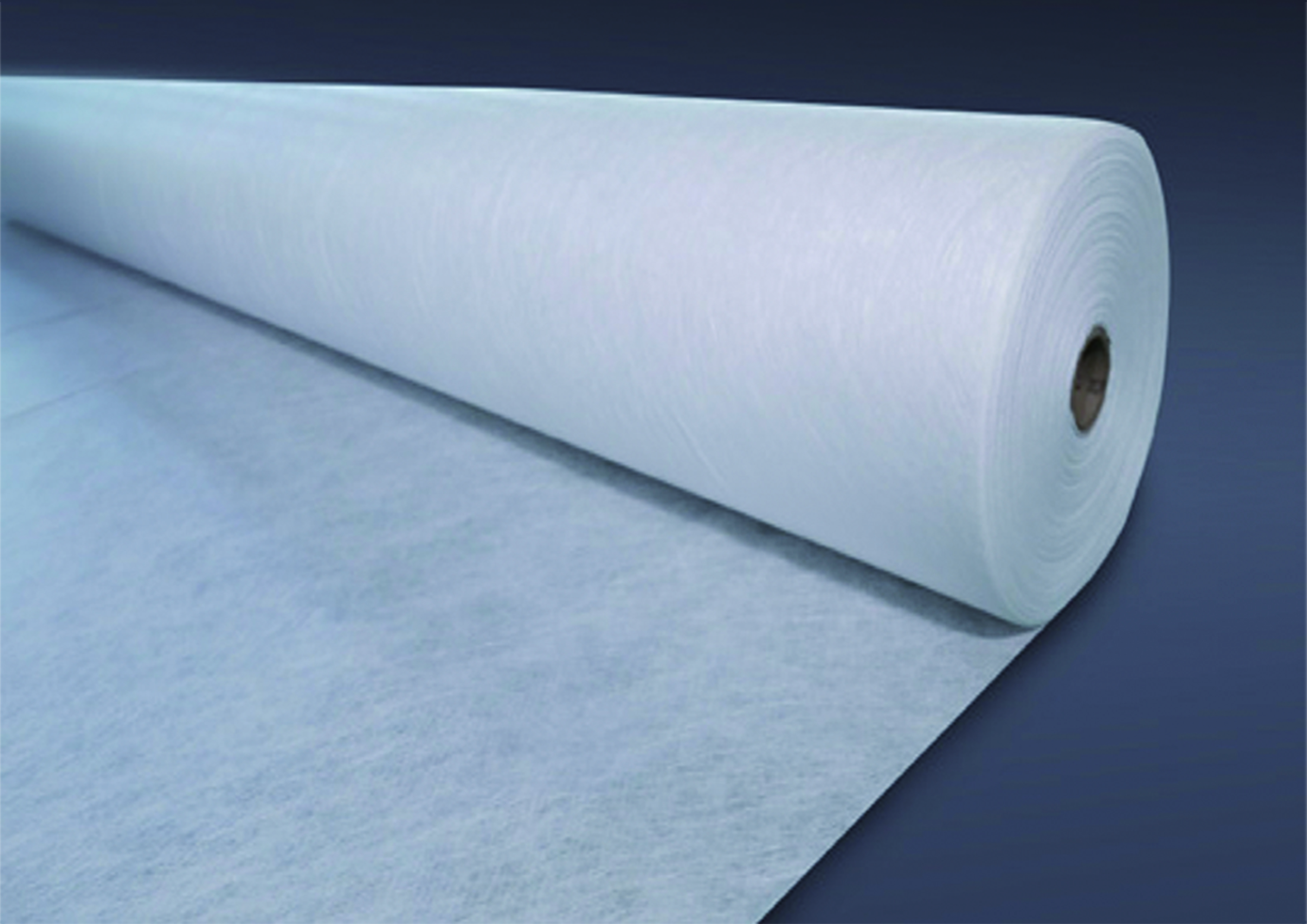

TDF Geotextile 200g/㎡
A protective screed distributes loads evenly and provides a stable substrate for tile installation.
A high-performance tile adhesive ensures reliable bonding between the protective screed and ceramic tiles, even under exterior exposure conditions.
Recommended Product:

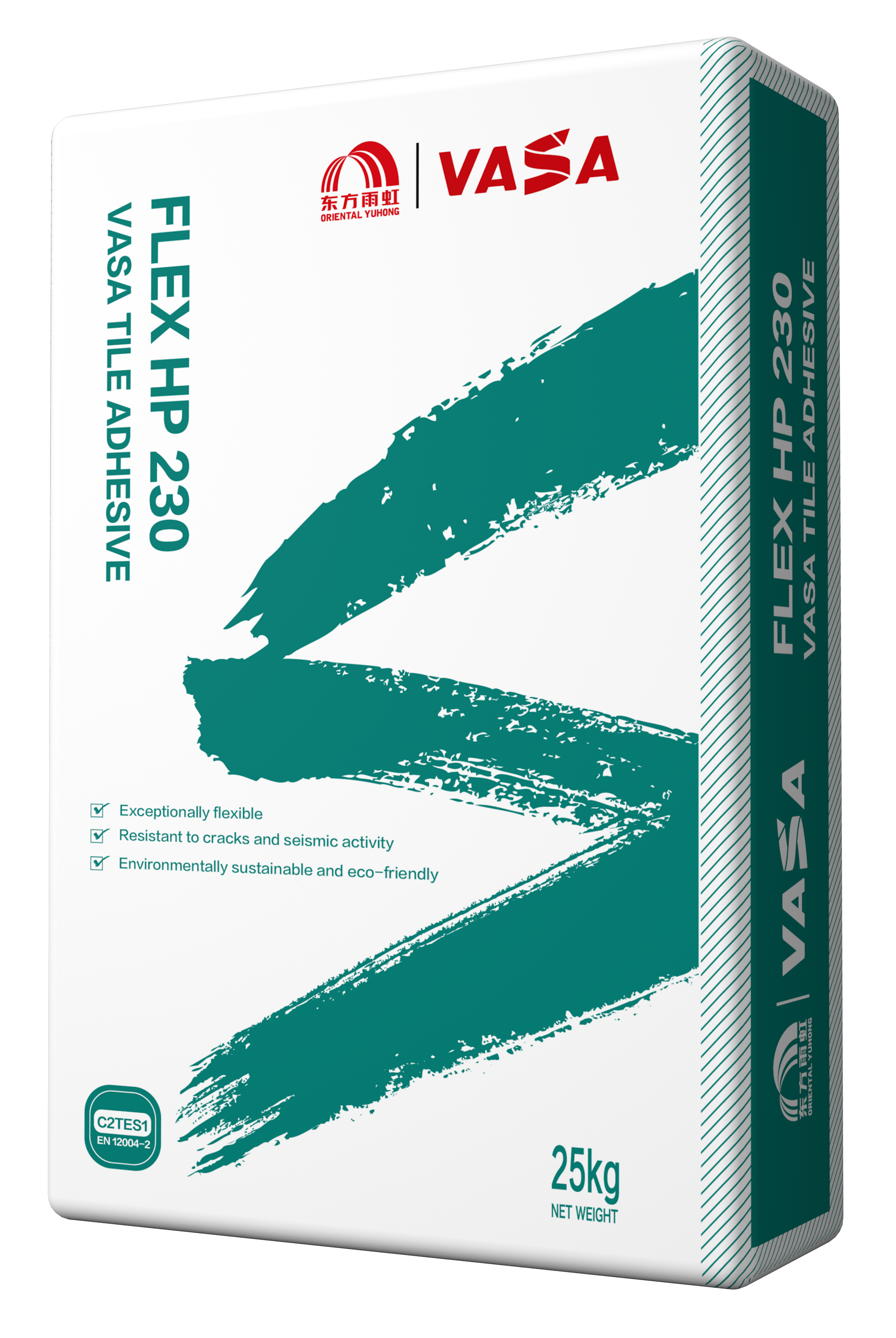

VASA Tile Adhesive Flex HP 230
Tile grout protects tile joints while contributing to the overall appearance and durability of the tiled surface.
Recommended Product:
VASA Tile Grout Colorful 200
Sealant is applied at internal corners and critical detail areas to improve watertightness and accommodate localized movement and stress concentration.
Recommended Product:

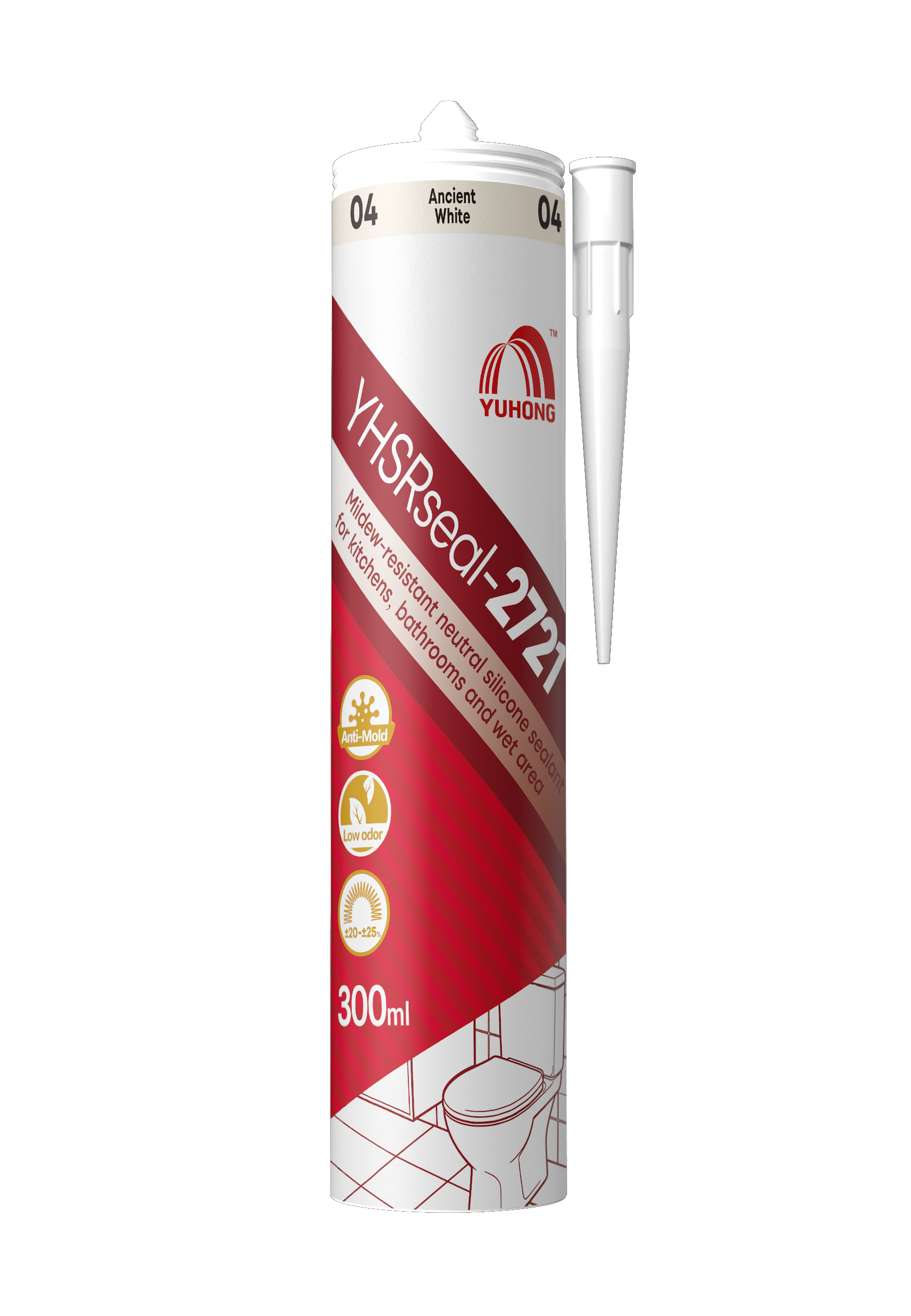

YHSRseal-2721 Mildew-resistant Neutral Silicone Sealant
Chamfers at corners and transitions help reduce stress concentration and improve waterproofing continuity at detail areas.
Fully compatible system components
Reduced risk of interface failure
Simplified project coordination
Reliable long-term waterproofing performance
Complete solution from a single supplier
Tiled terraces present a challenging waterproofing environment due to continuous exposure to weather conditions, structural movement, and the concealed nature of the waterproofing layer. Any failure in the system can lead to difficult and costly repairs.
To address these challenges, a well-designed system must work as an integrated whole, combining reliable waterproofing performance with compatible supporting layers such as primers, insulation, and tile finishes.
Polyurethane liquid-applied waterproofing systems are widely used in tiled terrace applications due to their flexibility, durability, and seamless performance under complex service conditions.
With a complete system approach, OYH provides not only individual waterproofing materials but also fully compatible terrace solutions designed to enhance long-term performance, reduce system risks, and improve overall durability.
